INFO MOTOR

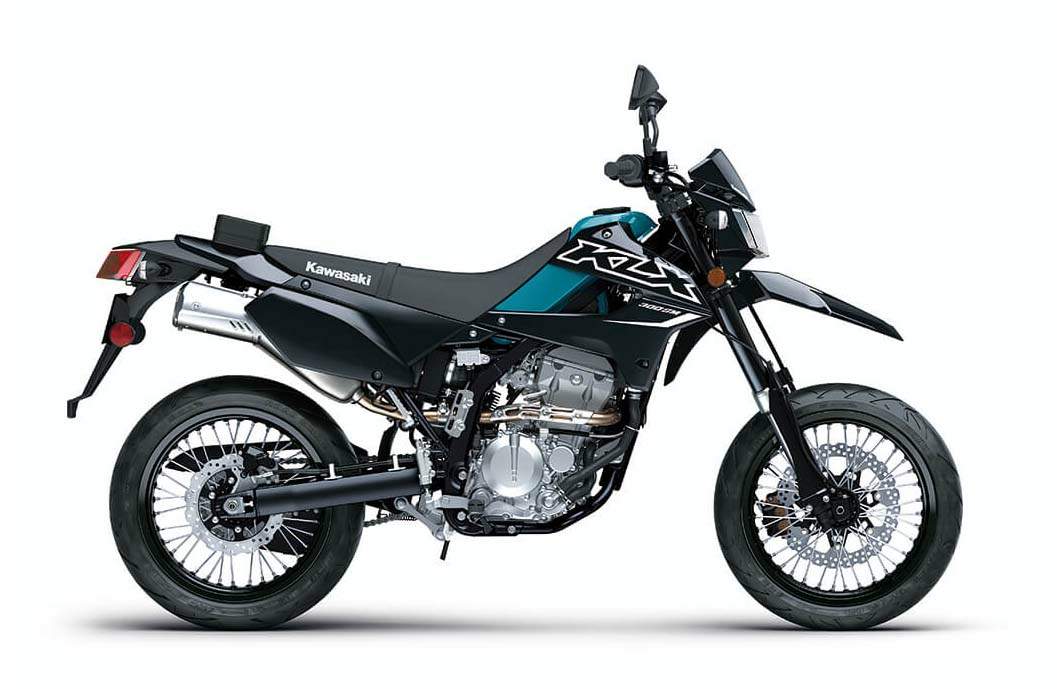

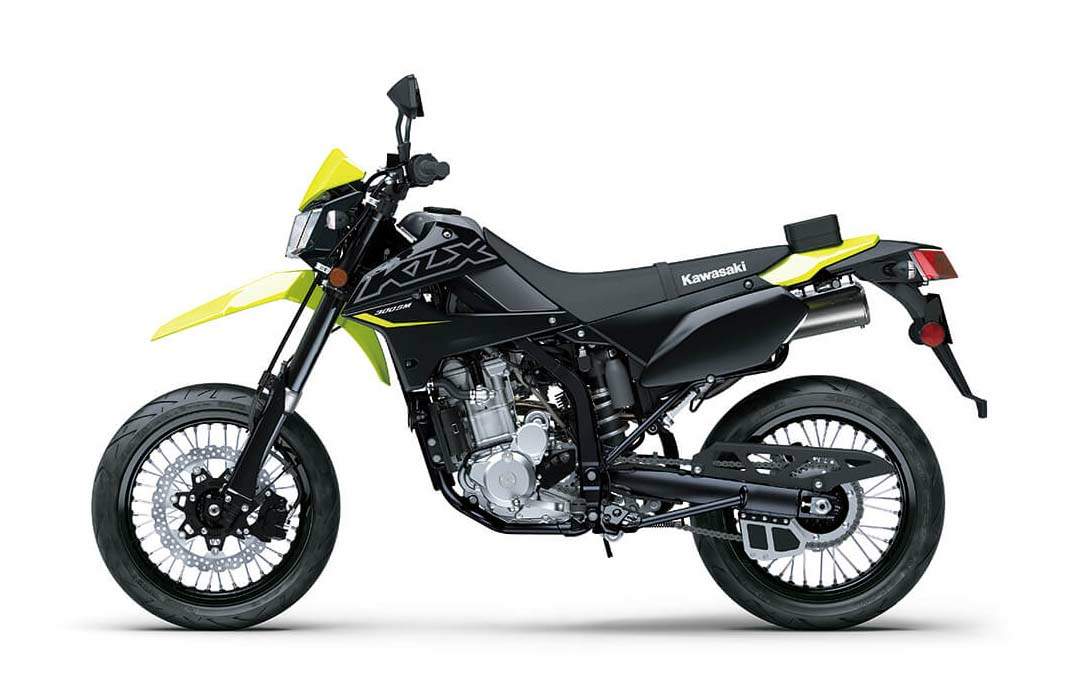

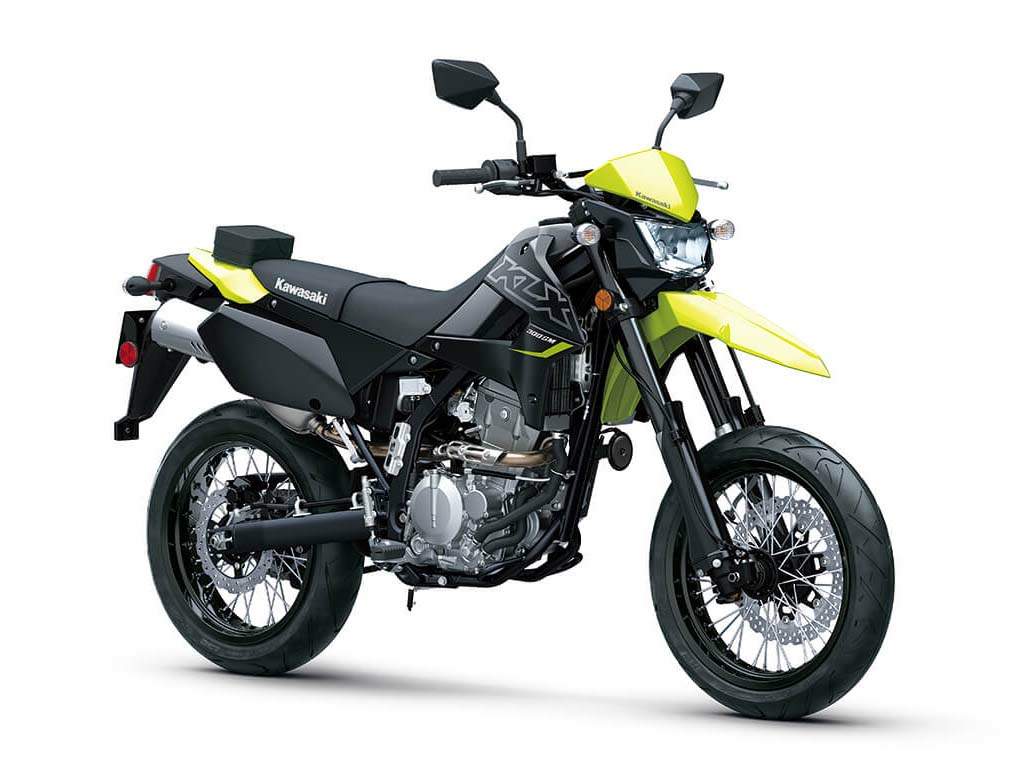

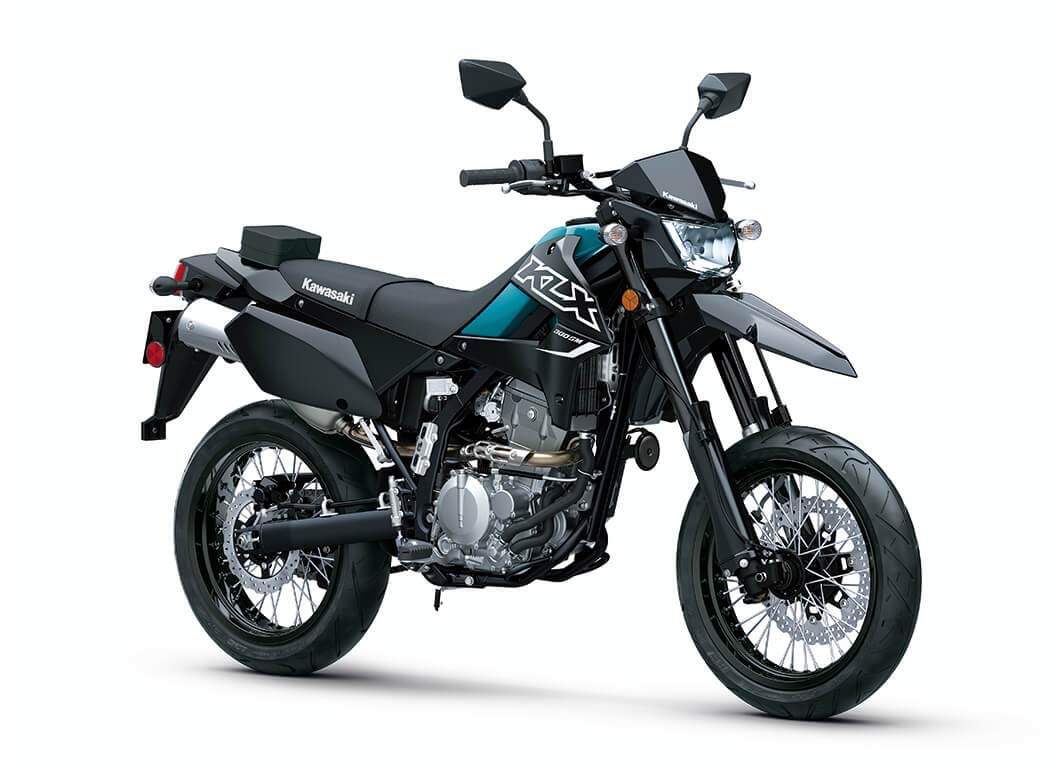

| Make Model | : | Kawasaki KLX 300SM |
|---|---|---|
| Year | : | 2023 |
| Engine | : | Four stroke, single cylinder, DOHC, 4 valve |
| Capacity | : | 292 cc / 17.8 cu-in |
| Bore x Stroke | : | 78.0 x 61.2 mm |
| Cooling System | : | Liquid cooled |
| Compression Ratio | : | 11.1:1 |
| Lubrication | : | Forced lubrication, wet sump |
| Induction | : | Fuel injection with 34mm Keihin throttle body |
| Ignition | : | Electric CDI |
| Starting | : | Electric |
| Max Power | : | NA |
| Max Torque | : | NA |
| Clutch | : | Wet multi-disc, manual |
| Transmission | : | 6 Speed |
| Final Drive | : | Chain |
| Frame | : | Semi Double Cradle |
| Front Suspension | : | 43 mm inverted fork with adjustable compression damping |
| Front Wheel Travel | : | 230 mm / 9.1 in |
| Rear Suspension | : | Uni-Trak, gas-charged shock with piggyback reservoir, adjustable compression and rebound damping, and adjustable preload |
| Rear Wheel Travel | : | 205 mm / 8.1 in |
| Front Brakes | : | Single semi-floating 300 mm petal disc with dual-piston caliper |
| Rear Brakes | : | Single 240 mm petal disc with single-piston caliper |
| Front Tyre | : | 110/70-17M/C 54S |
| Rear Tyre | : | 130/70-17M/C 62S |
| Rake | : | 25┬░ |
| Trail | : | 70 mm / 2.8 in |
| Dimensions | : | Length 2145 mm / 84.4 in Width    790 mm / 31.1 in Height 1145 mm / 45.1 in |
| Wheelbase | : | 1435 mm / 56.5 in |
| Seat Height | : | 860 mm / 33.9 in |
| Ground Clearance | : | 215 mm / 8.5 in |
| Wet Weight | : | 138 kg / 304 lbs |
| Fuel Capacity | : | 7.7 Litres / 2.0 US gal |
