INFO MOTOR

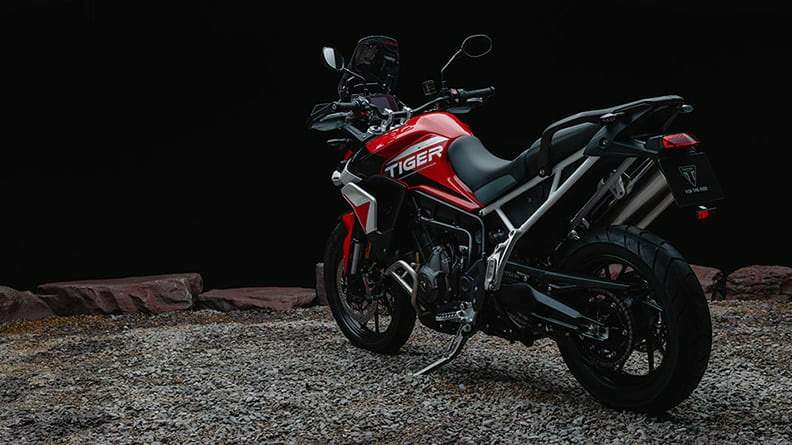

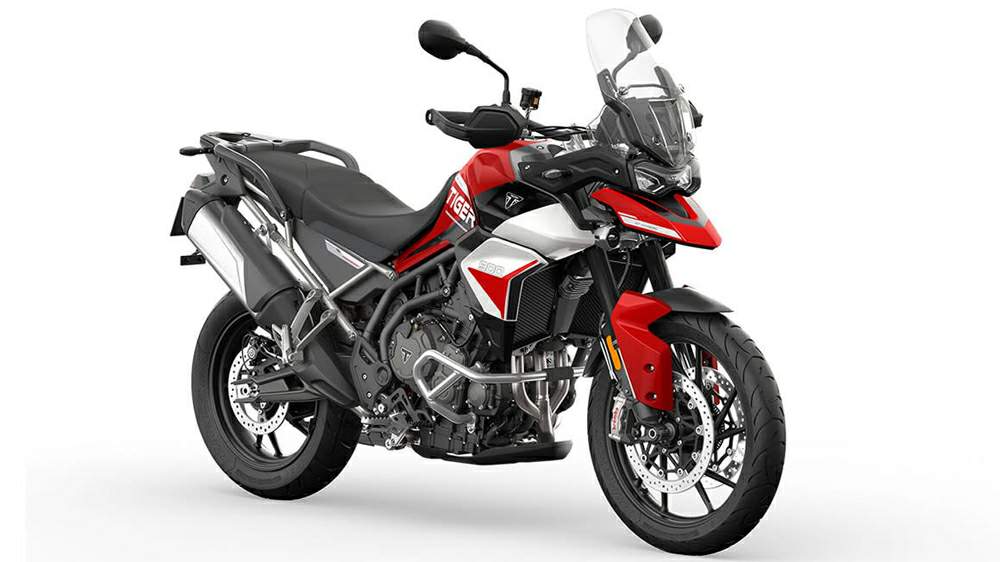

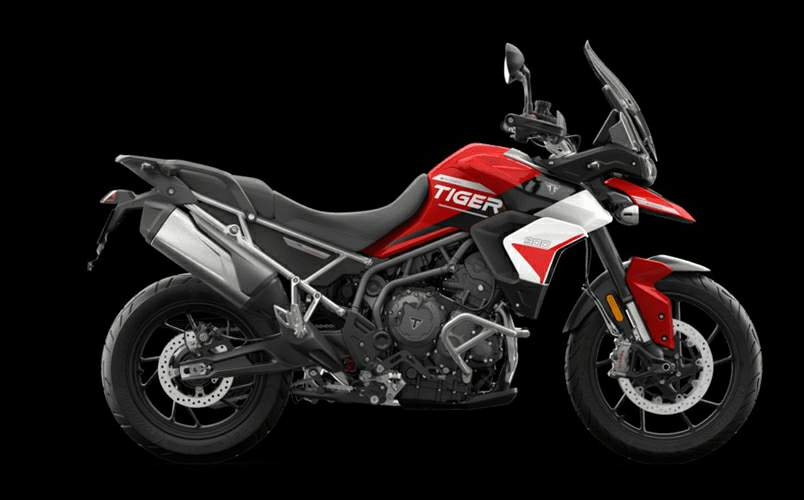

| Make Model | : | 2024 Triumph Tiger 900 GT Aragon Edition |
|---|---|---|
| Year | : | 2024 |
| Engine | : | Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder. |
| Capacity | : | 888 cc / 54.1 cu-in |
| Bore x Stroke | : | 78 x 61.9 mm |
| Cooling System | : | Liquid cooled |
| Compression Ratio | : | 11.27:1 |
| Exhaust | : | Stainless steel 3 into 1 header system, side mounted stainless steel silencer |
| Emission | : | Euro 5 |
| Lubrication | : | Wet sump |
| Induction | : | Multipoint sequential electronic fuel injection |
| Ignition | : | Digital CDI |
| Starting | : | Electric |
| Max Power | : | 70 kW / 93.9 hp @ 8750 rpm |
| Max Torque | : | 87 Nm / 64.1 lb-ft @ 7250 rpm |
| Clutch | : | Wet, multi-plate |
| Transmission | : | 6 Speed |
| Final Drive | : | O-ring chain |
| Frame | : | Tubular steel frame, bolt on sub frame |
| Swingarm | : | Twin-sided, cast aluminium alloy |
| Front Suspension | : | Marzocchi 45 mm upside down forks, manual rebound and compression damping adjustment. |
| Front Wheel Travel | : | 180 mm / 7.08 in |
| Rear Suspension | : | Marzocchi rear suspension unit, electronically adjustable preload and rebound damping. |
| Rear Wheel Travel | : | 170 mm / 6.7 in |
| Front Brakes | : | 2 x 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder |
| Rear Brakes | : | Single 255mm disc, Brembo single piston sliding caliper |
| ABS System | : | Multimode, Optimised Cornering ABS |
| Wheels | : | Cast iron |
| Front Wheel | : | 19 x 2.5 in |
| Rear Wheel | : | 17 x 4.25 in |
| Front Tyre | : | 100/90-19 |
| Rear Tyre | : | 150/70R17 |
| Rake | : | 24.6° |
| Trail | : | 133.3 mm / 5.24 in |
| Dimensions | : | Width 930 mm / 36.6 in Height 1410 - 1460 mm / 55.5 - 57.5 in |
| Wheelbase | : | 1556 mm / 61.25 in |
| Seat Height | : | 820 - 840 mm / 32.3 - 33.1 in |
| Dry Weight | : | 198 kg / 436.5 lbs |
| Fuel Capacity | : | 20 Litres / 5.28 US gal |
