INFO MOTOR

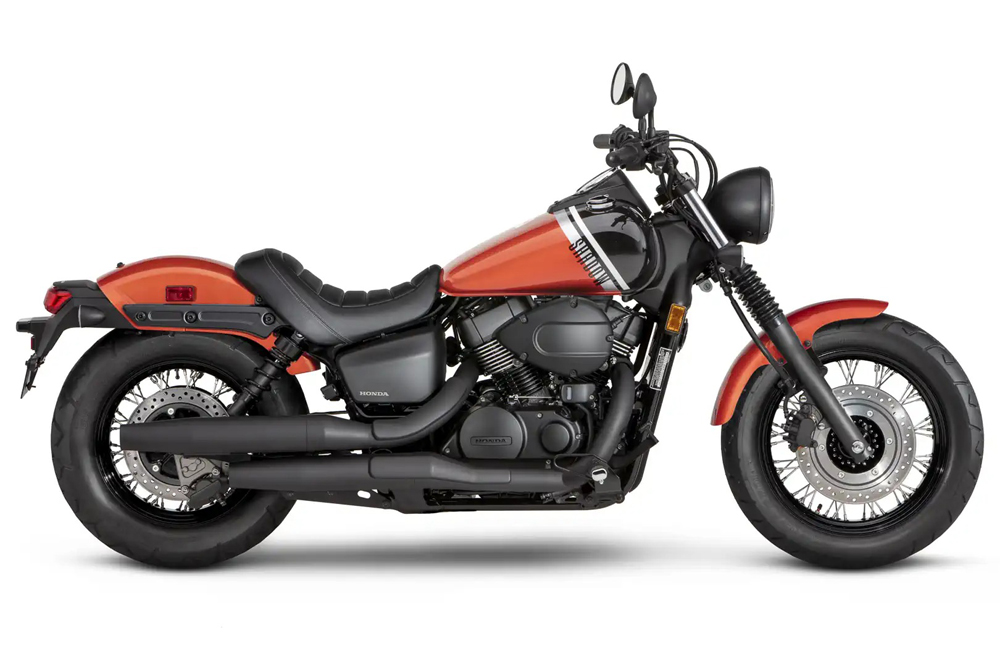

| Make Model | : | Honda VT 750C Shadow Phantom |
|---|---|---|
| Year | : | 2024 |
| Engine | : | Four stroke, 52┬░ V-twin, SOHC, 6 valve |
| Capacity | : | 745 cc / 45.5 cub in. |
| Bore x Stroke | : | 79 x 76 mm |
| Compression Ratio | : | 9.6:1 |
| Coooling System | : | Liquid cooled |
| Induction | : | PGM-FI electronic fuel injection with automatic choke, 34mm throttle body |
| Ignition | : | Digital 3-D mapping, two spark plugs per cylinder |
| Starting | : | Electric |
| Clutch | : | Wet, multiplate with coil springs |
| Max Power | : | 33.5 kW / 44.9 hp @ 5500 rpm |
| Max Torque | : | 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 3500 rpm |
| Transmission | : | Wide ratio 5 speed |
| Final Drive | : | Shaft |
| Gear Ratio | : | 1st 2.400 (36/15)  /  2nd 1.550 (31/20)  /  3rd 1.174 (27/23)  /  4th 0.960 (24/25)  /  5th 0.852:1 (23/27) |
| Front Suspension | : | 41mm telescopic fork |
| Front Wheel Travel | : | 117 mm / 4.6 in. |
| Rear Suspension | : | Dual conventional dampers with 5-step adjustable spring preload, 90mm wheel travel |
| Rear Wheel Travel | : | 90 mm / 3.5 in. |
| Front Brakes | : | Single 296 mm disc, 2 piston caliper |
| Rear Brakes | : | Single 276mm disc w/ 2-piston caliper |
| ABS | : | Optional (+$300) |
| Front Tyre | : | 120/90-17 |
| Rear Tyre | : | 160/80-15 |
| Wheelbase | : | 1641 mm / 64 5 in |
| Seat Height | : | 655 mm / 25.8 in |
| Wet-Weight | : | 251 kg / 549 lb |
| Fuel Capacity | : | 14 liters (including 3.5-litre reserve) / 3.7 US gal |
| Consumption Average | : | 4.2 L/100 km / 23.8 km/l / 56 US mpg |
