INFO MOTOR

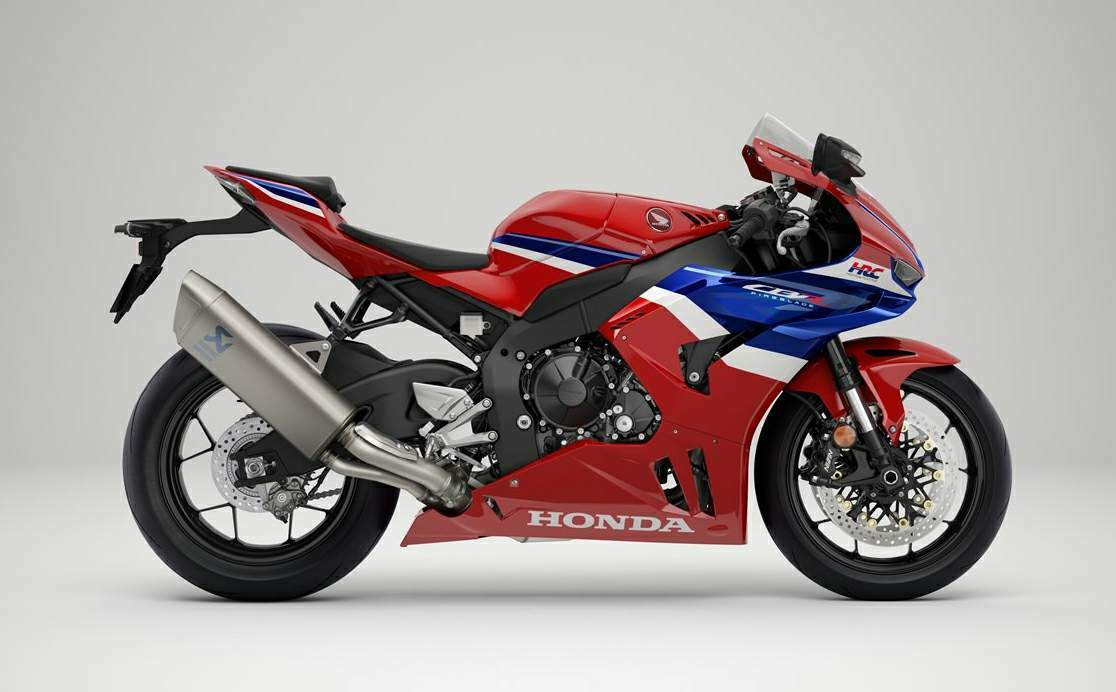

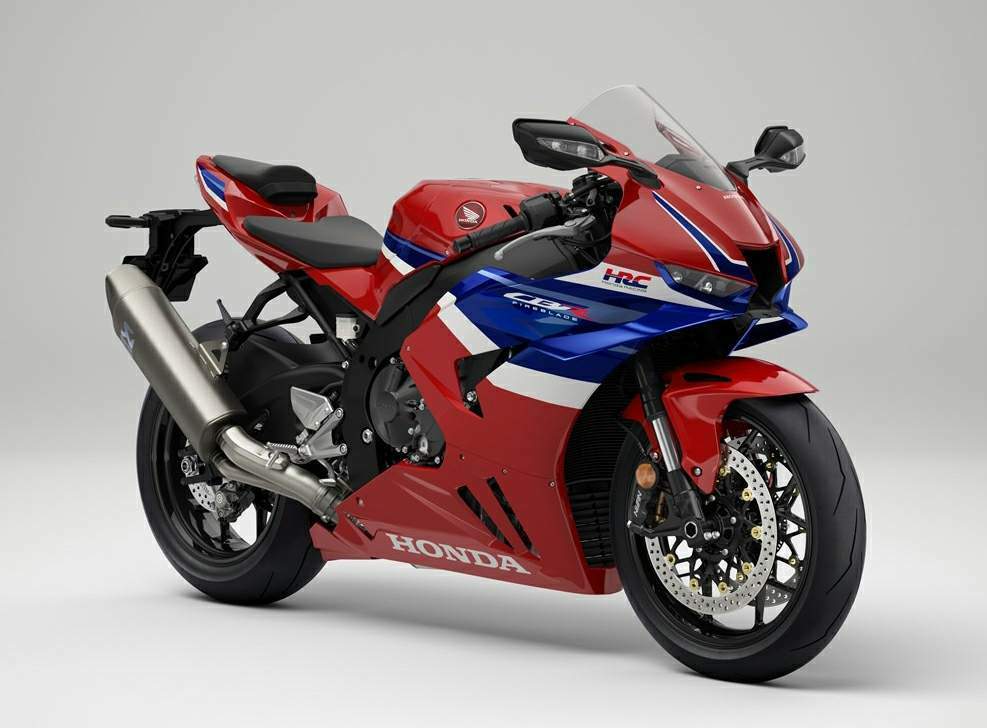

| Make Model | : | Honda CBR1000RR-R Fireblade |
|---|---|---|
| Year | : | 2024 |
| Engine | : | Four stroke, transverse 4 cylinder, DOHC, 4 valves per cylinder |
| Capacity | : | 999.9 cc / 61 cu-in |
| Bore x Stroke | : | 81 x 48.5 mm |
| Compression Ratio | : | 13.6:1 |
| Cooling System | : | Liquid cooled |
| Exhaust | : | Titanium Akrapovič |
| Induction | : | Programmed Dual Stage Fuel Injection (PGM-DSFI) with 52mm throttle bodies, Denso 12-hole injectors |
| Ignition | : | Digital transistorized with electronic advance |
| Battery | : | 12-6 YTZ7S |
| Starting | : | Electric |
| Max Power | : | 215 hp / 160kW @ 14000 rpm |
| Max Torque | : | 113 Nm / 82.6 lb-ft @ 12000 rpm |
| Clutch | : | Wet, multiplate hydraulic clutch with assist slipper |
| Transmission | : | 6 speed |
| Final Drive | : | Chain |
| Frame | : | Twin-spar aluminum |
| Front Suspension | : | SHOWA BPF 43mm telescopic fork with preload, compression and rebound adjustment |
| Front Wheel Travel | : | 120 mm / 4.7 in |
| Rear Suspension | : | SHOWA BFRC-Lite Pro-Link swingarm with 10-step preload, stepless compression and rebound damping adjustment |
| Rear Wheel Travel | : | 137 mm / 5.3 in |
| Front Brakes | : | 2 x 330mm discs with radially mounted 4-piston Nissin calipers |
| Rear Brakes | : | Single 220mm disc with 2-piston Brembo caliper |
| ABS System | : | 2 Channel |
| Wheels | : | Cast aluminum |
| Front Rim | : | 3.5MT x 17 |
| Rear Rim | : | 6.0MT x 17 |
| Front Tyre | : | 120/70-ZR17 M/C (58W) |
| Rear Tyre | : | 200/55-ZR17 M/C (78W) |
| Rake | : | 23.56° |
| Trail | : | 100.8 mm / 4.0 in |
| Dimensions | : | Length 2100 mm / 82.7 in Width 740 mm / 29.1 in Height 1140 mm / 44.9 in |
| Wheelbase | : | 1450 mm / 57.1 in |
| Seat Height | : | 830 mm / 32.7 in |
| Ground Clearance | : | 130 mm / 5.1 in |
| Wet Weight | : | 200 kg / 441 lbs |
| Fuel Capacity | : | 16.5 Litres / 4.4 US gal |
